246 W 18th Street – Chelsea High Rise

High rise in the heart of Chelsea

High rise in the heart of Chelsea

High rise in the heart of Chelsea

Full MEP/FP engineering for 246 W 18th Street, an 11-story tower built to the Passive House standard.

Full MEP/FP engineering for 246 W 18th Street, an 11-story tower built to the Passive House standard.

YEAR

YEAR

YEAR

[TBD]

[TBD]

[TBD]

LOCATION

LOCATION

LOCATION

Chelsea, NY

Chelsea, NY

Chelsea, NY

CATEGORY

CATEGORY

CATEGORY

Residential

Residential

Residential

Full MEP/FP engineering for 246 W 18th Street, an 11-story tower built to the Passive House standard.

Full MEP/FP engineering for 246 W 18th Street, an 11-story tower built to the Passive House standard.

Get to know this project’s architects

Get to know this project’s architects

OVERVIEW

OVERVIEW

OVERVIEW

246 W 18th Street is an 11-story high-performance residential tower in Chelsea, developed with Pinner Development Group and designed with RyDE Design. The building rises tall and narrow behind a full-height glass curtain wall, with cascading green terraces and an architectural crown at the top. Downtown Engineers delivered full MEP/FP engineering, with every system engineered to the Passive House standard.

SPECIFICATIONS

SPECIFICATIONS

SPECIFICATIONS

NAME:

246 W 18th Street – Chelsea High Rise

CONTRACTOR:

[TBD]

LOCATION:

Chelsea, NY

SERVICES PROVIDED:

MEP/FP Engineering

CATEGORY:

Residential

SIZE:

11 stories

YEAR:

[TBD]

HEIGHT:

STATUS:

[TBD]

3D IMAGES:

ARCHITECTS:

RyDE Design (Rasesh Doshi)

PHOTOGRAPHY:

[TBD]

NAME:

246 W 18th Street – Chelsea High Rise

YEAR:

[TBD]

CONTRACTOR:

[TBD]

SIZE:

11 stories

LOCATION:

Chelsea, NY

STATUS:

[TBD]

SERVICES PROVIDED:

MEP/FP Engineering

HEIGHT:

CATEGORY:

Residential

ARCHITECTS:

RyDE Design (Rasesh Doshi)

3D IMAGES:

PHOTOGRAPHY:

[TBD]

The challenge

The challenge

The building was designed to the Passive House standard. The certification target shifted during the project, but the performance bar it set never moved, and every system stayed engineered to it. On a tower this slender, holding that standard is harder than it sounds. The hardest system to place was the ERV. An Energy Recovery Ventilation system brings in continuous fresh air while recovering heat and moisture from the exhaust, which makes it central to a high-performance envelope. It needs straight vertical duct chases, and in this building every square inch of floor plan was already spoken for. The apartment layouts also kept moving, with brokers weighing in on the plans well after the mechanical design was underway.

246 W 18th Street – Chelsea High Rise

Full MEP/FP engineering for 246 W 18th Street, an 11-story tower built to the Passive House standard.

The Project

The Project

We found a vertical path for the ERV. The system runs from the rooftop unit straight down the full height of the building and still reaches every apartment, worked around a compact footprint and layout revisions that arrived after design had started.

11

Stories

For heating and cooling, we used a high-efficiency VRF heat-recovery system, giving each apartment individual zone control while holding the efficiency the performance standard required. For domestic hot water, we specified a heat-pump-based system, which keeps fossil fuel combustion out of the building and aligns with where New York City code is heading for new construction. We coordinated these systems alongside RyDE Design, Pinner Development Group, Structural Engineering Technologies, and MAO Architects, integrating the mechanical work with the structure and the façade.

11

Stories

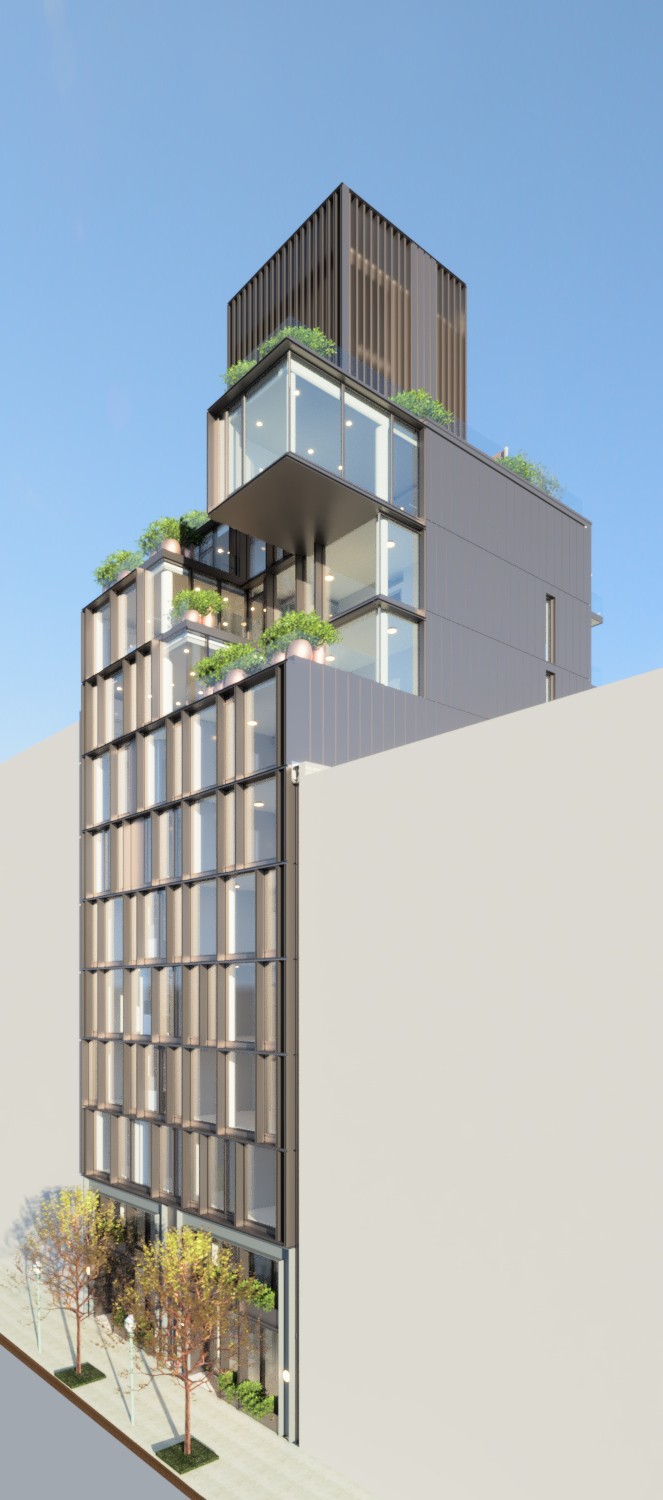

246 W 18th Street – Chelsea High Rise — 246W18_Rendering 1 (1).jpg
Image Gallery: List of most relevant projects
Photo Gallery

The result

The result

Downtown Engineers delivered a fully integrated MEP/FP system for an 11-story residential tower engineered to the Passive House standard.

11

Stories · High-performance residential tower under one MEP/FP scope
