Bethany Terraces

Bethany Terraces

Bethany Terraces

Bethany Terraces

NYC's first modular Passive House senior housing

NYC's first modular Passive House senior housing

YEAR

YEAR

YEAR

2024

2024

2024

LOCATION

LOCATION

LOCATION

East Flatbush, Brooklyn, NY

East Flatbush, Brooklyn, NY

East Flatbush, Brooklyn, NY

CATEGORY

CATEGORY

CATEGORY

Residential

Residential

Residential

NYC's first modular Passive House senior housing

NYC's first modular Passive House senior housing

Get to know this project’s architects

Get to know this project’s architects

OVERVIEW

OVERVIEW

OVERVIEW

Bethany Terraces is a four-story, 57-unit affordable senior living building in East Flatbush, Brooklyn, covering 39,200 square feet. It is New York City's first modular Passive House senior housing project, developed by RiseBoro Community Partnership and designed by Paul Castrucci Architects. Downtown Engineers led the MEP engineering, with Ray Ramos as lead Principal.

SPECIFICATIONS

SPECIFICATIONS

SPECIFICATIONS

NAME:

Bethany Terraces

CONTRACTOR:

LOCATION:

East Flatbush, Brooklyn, NY

SERVICES PROVIDED:

MEP/FP Engineering

CATEGORY:

Residential

SIZE:

39,200 SF / 57 units / 6 stories

YEAR:

2024

HEIGHT:

STATUS:

Completed

3D IMAGES:

ARCHITECTS:

Paul Castrucci Architects

PHOTOGRAPHY:

NAME:

Bethany Terraces

YEAR:

2024

CONTRACTOR:

SIZE:

39,200 SF / 57 units / 6 stories

LOCATION:

East Flatbush, Brooklyn, NY

STATUS:

Completed

SERVICES PROVIDED:

MEP/FP Engineering

HEIGHT:

CATEGORY:

Residential

ARCHITECTS:

Paul Castrucci Architects

3D IMAGES:

PHOTOGRAPHY:

The challenge

The challenge

The project had to satisfy two demanding standards at once. Passive House certification requires strict airtightness and energy recovery. Modular construction requires every connection to land within tight tolerances, with no room for adjustment in the field. Once the modules left the factory, changes were not possible, so riser connections and plumbing tie-ins had to be set precisely before fabrication. Indoor air quality carried extra weight here, since the residents are seniors. The ventilation had to supply continuous fresh air while holding heat inside the building, and the HVAC had to run on the ultra-low energy loads Passive House allows. Plumbing fixtures had to meet Enterprise Green Communities water efficiency criteria. A COVID-related pause stopped the project from 2020 to 2022. When fabrication resumed in 2023, the engineering package had to still be current and buildable, ready for the modules to arrive on site that October.

Bethany Terraces

NYC's first modular Passive House senior housing

The Project

The Project

We coordinated Passive House performance with modular tolerances throughout design, so neither standard compromised the other. The ERV brings in fresh air at all times and keeps heat inside the building, which is what lets the Passive House hold its certified standard. We sized the HVAC to the ultra-low energy loads the standard requires, and specified every plumbing fixture to meet Enterprise Green Communities water efficiency criteria.

57

Affordable senior housing units

Because the building was roughly 75% prefabricated off-site by Whitley East LLC, the critical coordination happened before fabrication. We aligned riser connections and plumbing tie-ins precisely ahead of installation, since nothing could be adjusted once the modules shipped. Through the COVID pause, we kept the documentation and design coordination up to date, which is what let the team start building as soon as the modules arrived in late October 2023.

57

Affordable senior housing units

Bethany Terraces — Bethany Terraces - 2.png
Image Gallery: List of most relevant projects
Photo Gallery

The result

The result

Downtown Engineers delivered New York City's first modular Passive House senior housing project, which received its Temporary Certificate of Occupancy in July 2024.

57

Affordable senior housing units across 39,200 SF, four stories

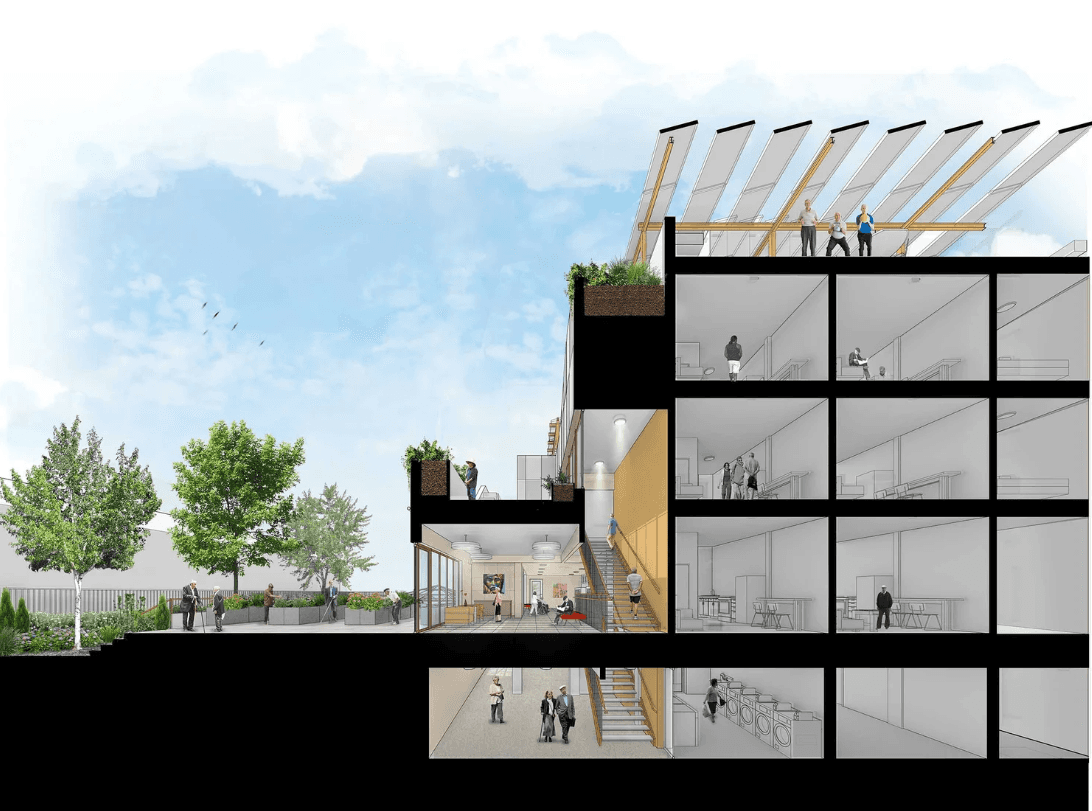

Bethany Terraces — drawing 1
Drawing Gallery: Initial drawings and project sketches
Drawing Gallery
